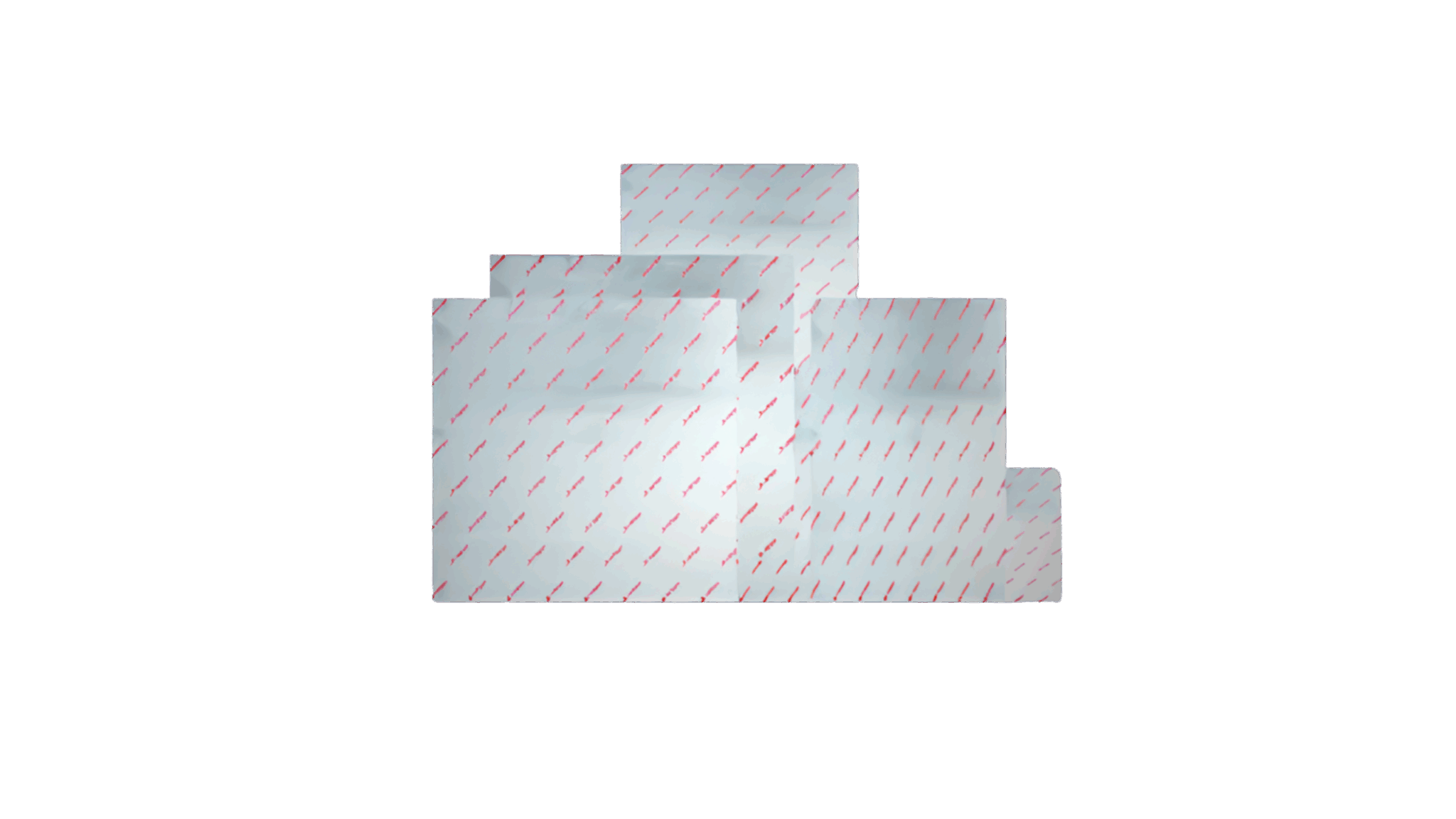

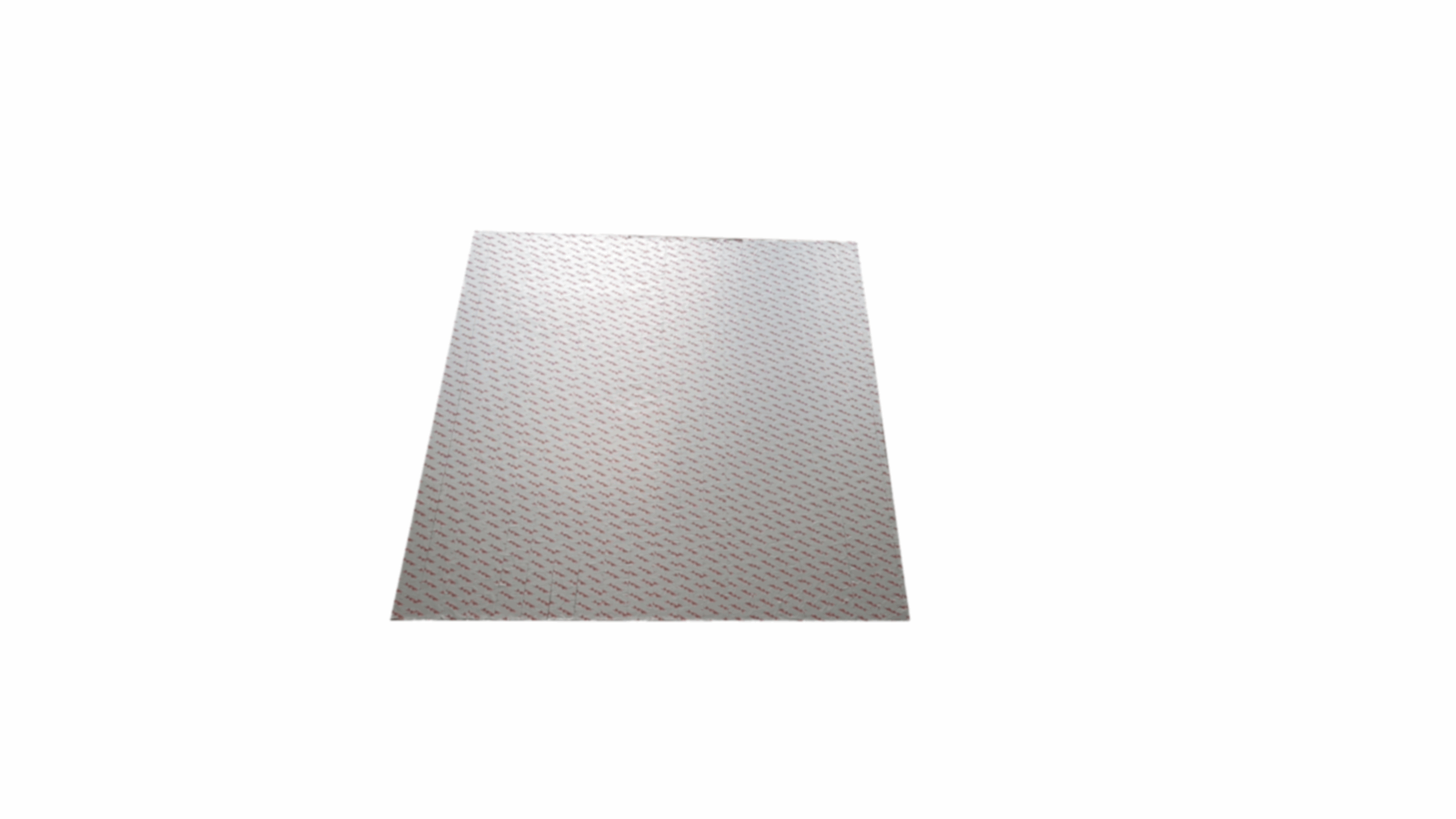

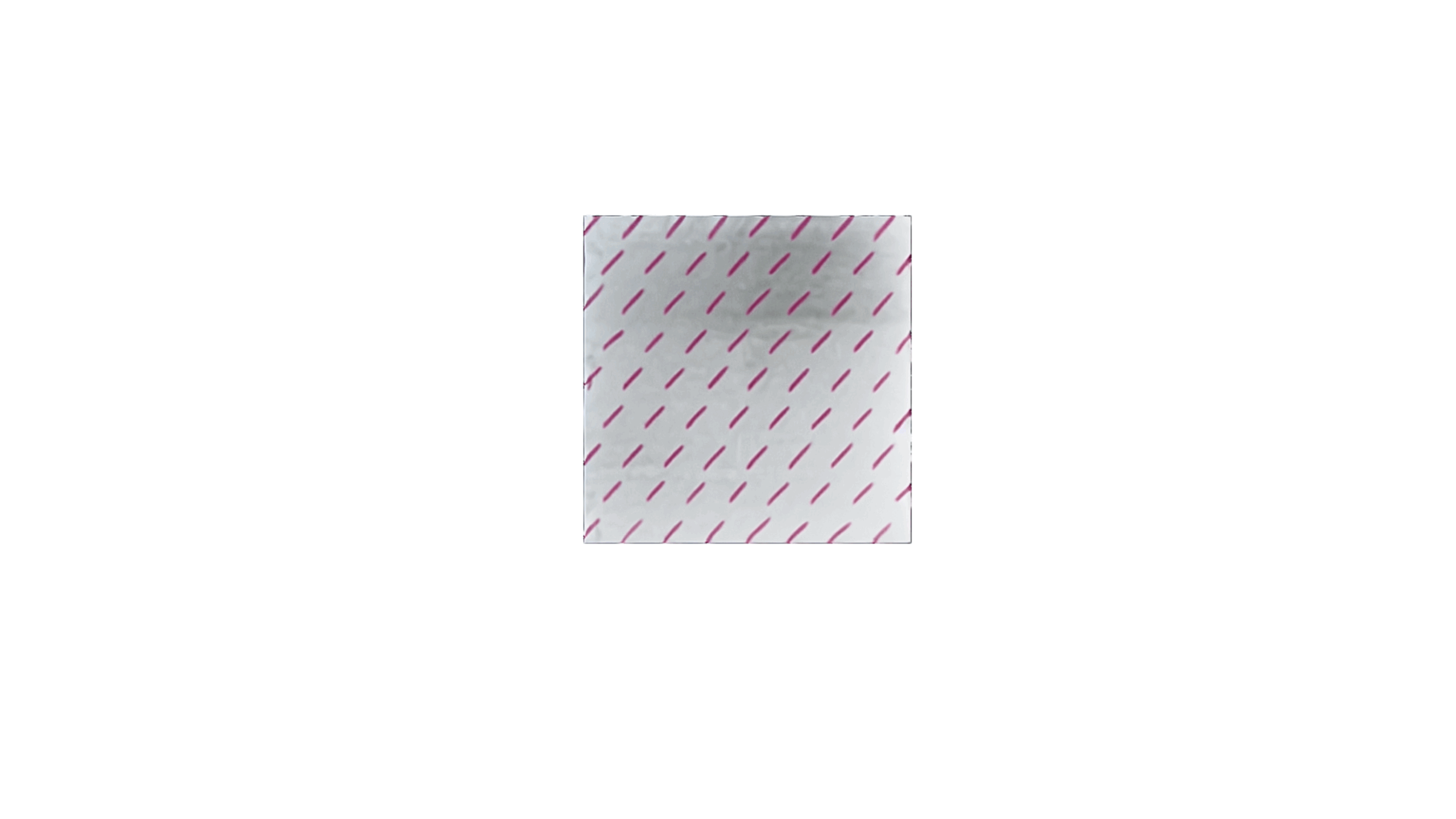

Product Introduction

Intumescent composite sheet is a type of fireproof sealing board that expands when exposed to heat. One side is a layer of galvanized steel plate, and the other side is composed of honeycomb shaped steel wire mesh covered with aluminum foil. The middle layer is made of heat expanding material. This product expands when exposed to fire and releases non-toxic and harmless gases. It is environmentally friendly, pollution-free, and contains no halogen components. Suitable for fire protection of cables of various voltage levels in industries such as power, petroleum, petrochemicals, metallurgy, communication, and construction.

Scope of use

Suitable for fire protection of cables of various voltage levels in industries such as power, petroleum, petrochemicals, metallurgy, communication, and construction, electrical cabinet holes, cable shafts, wall penetrations, as well as the passage of flammable and non flammable pipelines.

Product specifications

Size specifications 914mmx914mmx8mm

Aluminum plate thickness
( 0.3mm, steel plate thickness: 0.5mm )

Product weight ( 25kg/bag )

(One side composite aluminum plate and one side composite steel plate)

Product weight ( 19.5kg/sheet )

Product performance

Flexural strength

≥0.10MPa

Humidity resistance

≥ 120h, no cracking or powdering

Oil resistance

≥ 3d, no swelling or cracking

Freeze thaw cycle resistance

≥ 15 times, without cracking or powdering

Water resistance

≥ 3d, no swelling or cracking

Fire resistance temperature

1200 C

Fire integrity

The fire resistance integrity is ≥ 3h, and the cotton pad on the back of the test piece is not ignited,No continuous flames for 10 seconds or more have occurred

Fire resistance and thermal insulation

Fire resistance and thermal insulation ≥ 3h, temperature rise at any point on the back of the test piece ≤ 180 C , maximum surface temperature rise at 25mm from the sealing material at the back of the penetrating object ≤ 180 C , and maximum temperature rise at any point on the back of the frame surface ≤ 180 C

Inspection report

have Construction effect

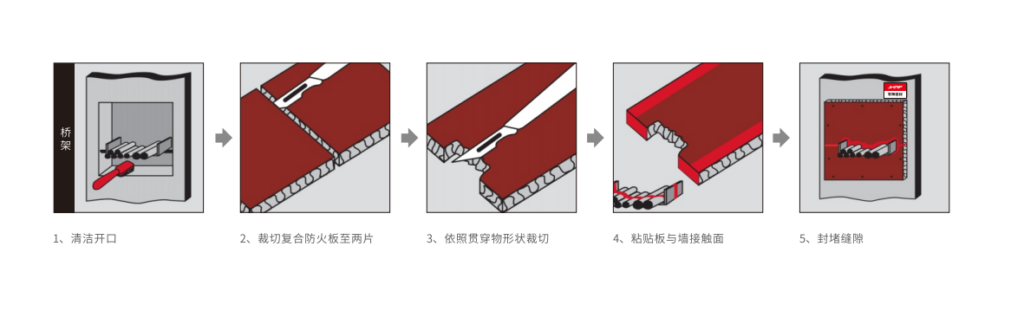

Installation instructions

1. Clean the opening and keep the contact surface clean.
2. Measure the opening size and cut the composite fireproof board to the appropriate
size, paying attention to a fixed edge that is 25mm wider than the actual opening size.
3. If the penetrating object passes through the fireproof board, the board can be cut
into two pieces and spliced around the penetrating object, or the space for the
penetrating object can be directly cut out according to the shape in the fireproof board.
Note that the maximum gap between the board and the penetrating object should not
exceed 1/2 “(13mm).
4. The contact surface between the cable seal and the board must be sealed with
expansion sealant or elastic sealant first.
5. Use expansion bolts allowed by the specifications to fix the composite fireproof
board on the surface of the opening. Pay attention to the distance requirements for
each fixed point. When two boards are installed and used together, expansion sealant
or elastic sealant can be used to bond the surface of the board.
6. If it is for maintenance needs, a label can be pasted on
the edge of the opening.
7. Repeat the above steps on the other side of the wall to
install the second panel.
