Product Introduction

Fire rated module completely solves the characteristics of fire-resistant pillows and fire-resistant bags, such as lack of moisture resistance, corrosion resistance, fear of rodent bites, easy collapse during stacking, and short shelf life. The overall product is composed of multiple organic substances, and the flame retardant module expands when exposed to fire, releasing non-toxic and harmless gases that are environmentally friendly, pollution-free, and halogen-free.

Scope of use

Suitable for fireproof sealing of single or multiple pipelines, temporary or permanent sealing of cable bundles and cable trays, temporary or permanent sealing of flammable pipelines, and temporary or permanent sealing of metal pipelines with or without insulation layers.

Product specifications

Size specifications Size: 200 * 100 * 50 Density: 0.24g/cm ³
( 0.35kg/block, 20 blocks/box; 7kg/box )
( 1000 yuan/m ³ )

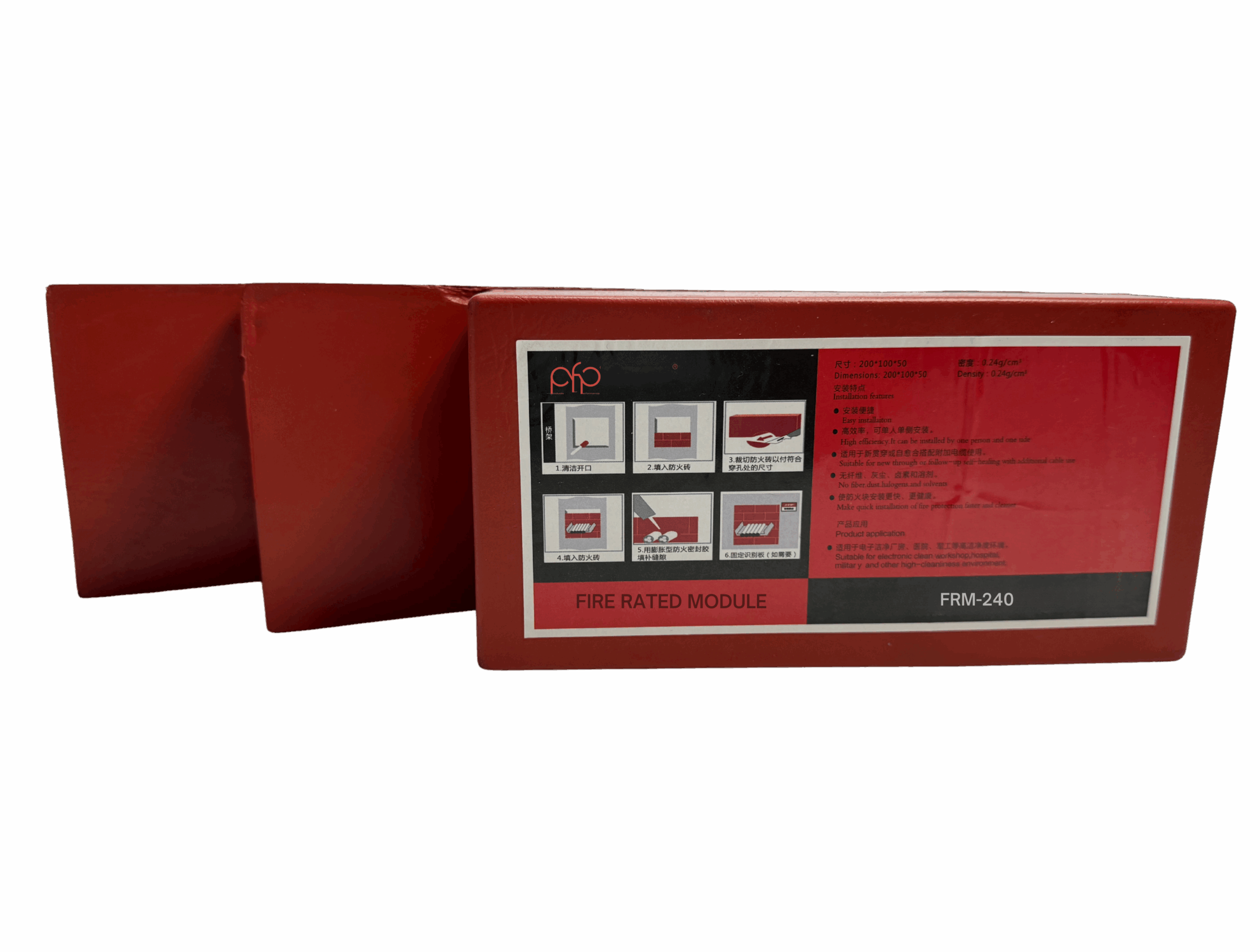

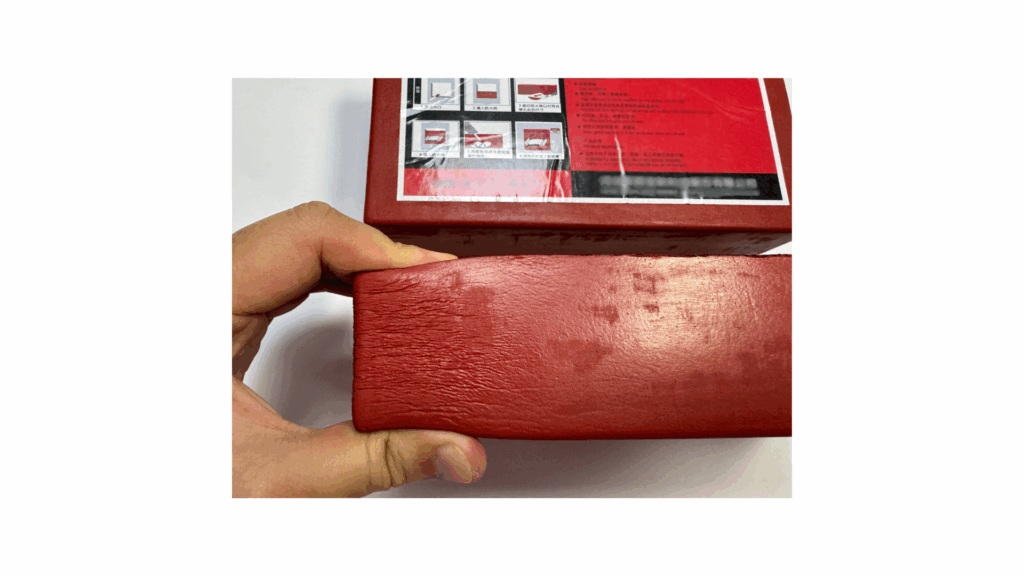

Product appearance
Product weight

Product performance

combustion performance

The combustion ≤2.0×10³kg/m³ performance shall not be lower than B2 level specified in GB8624-2012

Oil resistance

≥ 3d, no swelling or cracking

Apparent density

≤2.0×10³kg/m³

compressive strength

≥0.10

corrosive

≥ 7d, there should be no rusting or corrosion phenomenon

Humidity resistance

≥ 120h, no cracking or powdering

Fire resistance performance

Fire resistance performance The fire resistance limit of the first level fireproof sealing material is ≥ 3h

Inspection report

Size specifications Size: 200 * 100 * 50
Density: 0.24g/cm ³ ( 1000 yuan/m ³ )

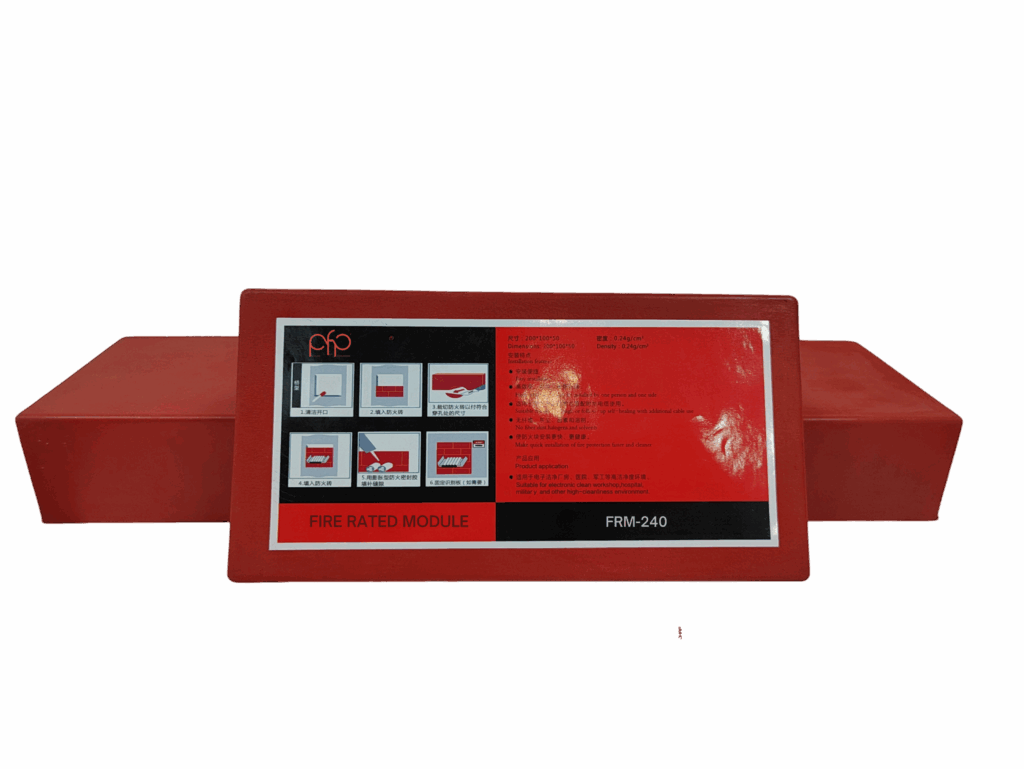

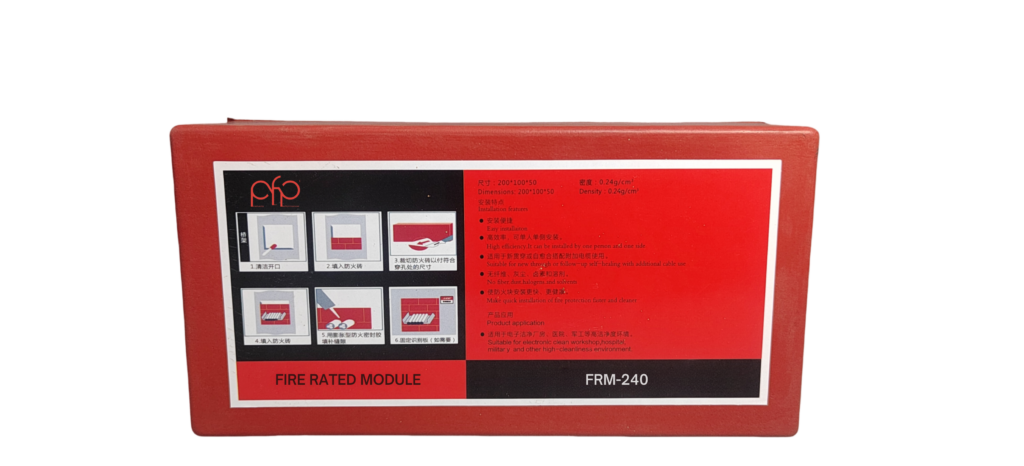

Product appearance

Installation instructions

1. Clean the opening
2. If used for openings without crossing objects (temporary fireproof sealing), the long
side of the fireproof module should be flush with the substrate and constructed flat and
stable inside the opening.
3. If used for openings with penetrations, the flame retardant module can be cut with a
knife to fit the size of the penetrations.
4. Align the long side of the fire-resistant module with the substrate and build it flat
and stable inside the opening.
5. Seal the cable gap and the gap between the fire-resistant module and the cable with
expansion sealant.
6. If necessary, install identification stickers in a prominent position next to the fireproof
sealing area as identification
marks for later maintenance.

Installation for traversing again:

1. Remove or cut off the fire-resistant module in the modified area.
2. Install penetrations, rebuild fire-resistant modules, and seal them with expansion type
fire-resistant sealant or flexible organic plugs.
3. When crossing a single cable again, it can be directly passed through the joint between
the fire-resistant modules, or a slightly smaller diameter hole can be drilled through the
fire-resistant module with a sharp metal tube or hose, and sealed with an expansion type
sealant.
